Description

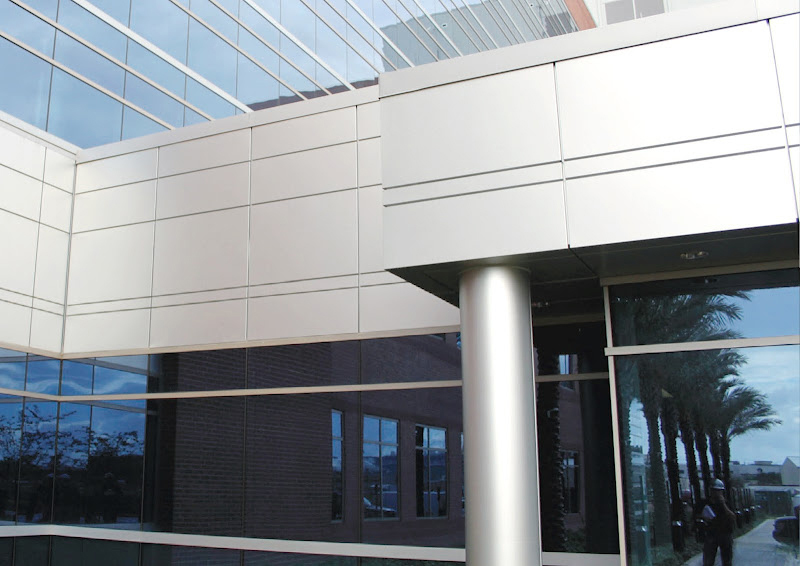

The aluminum composite panels are available in various thickness ranging from 1 mm to 6 mm or more, this thickness includes a varying thickness of top and bottom aluminium sheet with polyurethane (PE) board sandwiched between them. Which is the coated with either polyester or PVDF resin. Aluminium panels are used as wall cladding due to its high durability and high strength. These could be used as a cladding over an existing masonry curtain wall, with an grid work of aluminum sections as a bearing structure bolted to the wall, the composite panels are inserted and fastened unto the frame, and a silicon sealant is used to caulk the horizontal and vertical gaps. Aluminum composite panels available are factory installed into unitized frames and are used in unitized curtain walling systems in large-scale projects. Ensuring a high performance, flexible system for use as multi-story curtain-wall.


Characteristics

  • Superior‚Äč Flatness
  • Elegant & Modern
  • Sound Proof
  • Vibration Free
  • Lightweight

Applications

  • Exterior wall cladding
  • Interior wall cladding
  • Furniture
  • Kitchen
  • Ceilings
  • Advertising signage

Options Aluminum Finishes
